Battery Charger, Battery Eliminator and Batteries for the PRC-117

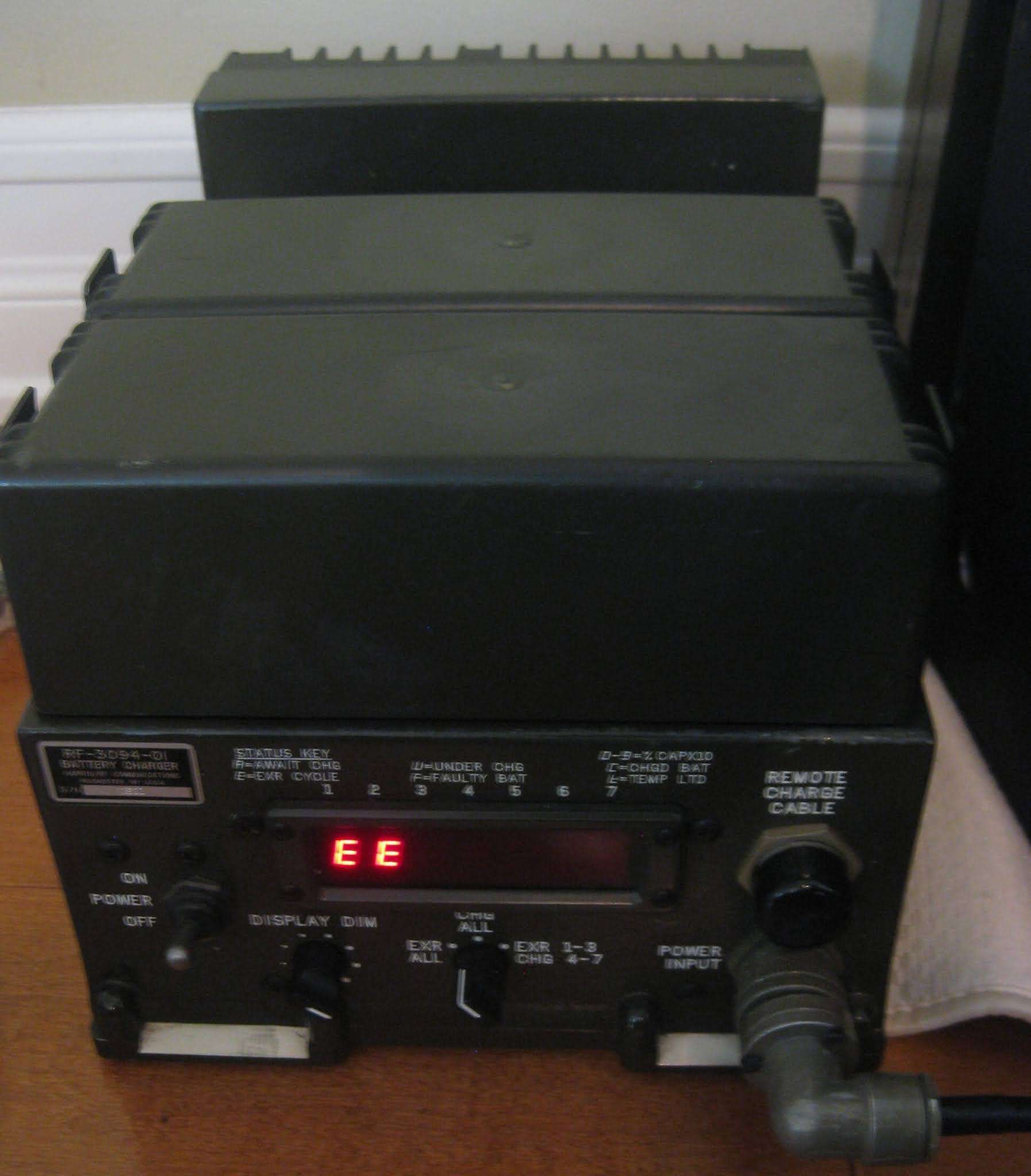

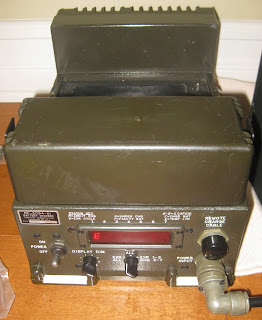

SOLD  ----This is the Harris/RF battery charger RF-3094-01 for three of the Nicad battery packs at the same time in either charge or exercise mode. I do not have the manual or the remote charging cable. Operation is very simple and the legends on the front explain the symbols shown on the display. Once a battery is charged this unit can be placed in the "Exercise" mode where it will run a routine and provide a percentage of capacity reading on a battery.









SOLD----This is the front of my Harris 10012-0590-03 battery eliminator



(This is an example of the model tag that my unit does not have)

My unit has an additional machined bar of aluminum added for heat sinking and the only connector is for AC.






This is not my unit but illustrates what one looks like without the additional heat sink.



Power connector pinout


AC power cord connector


I have two left of the (Assumed P/N: 10012-0300)  NiCad battery packs, both of them need to be rebuilt. One was sold  with the radio.

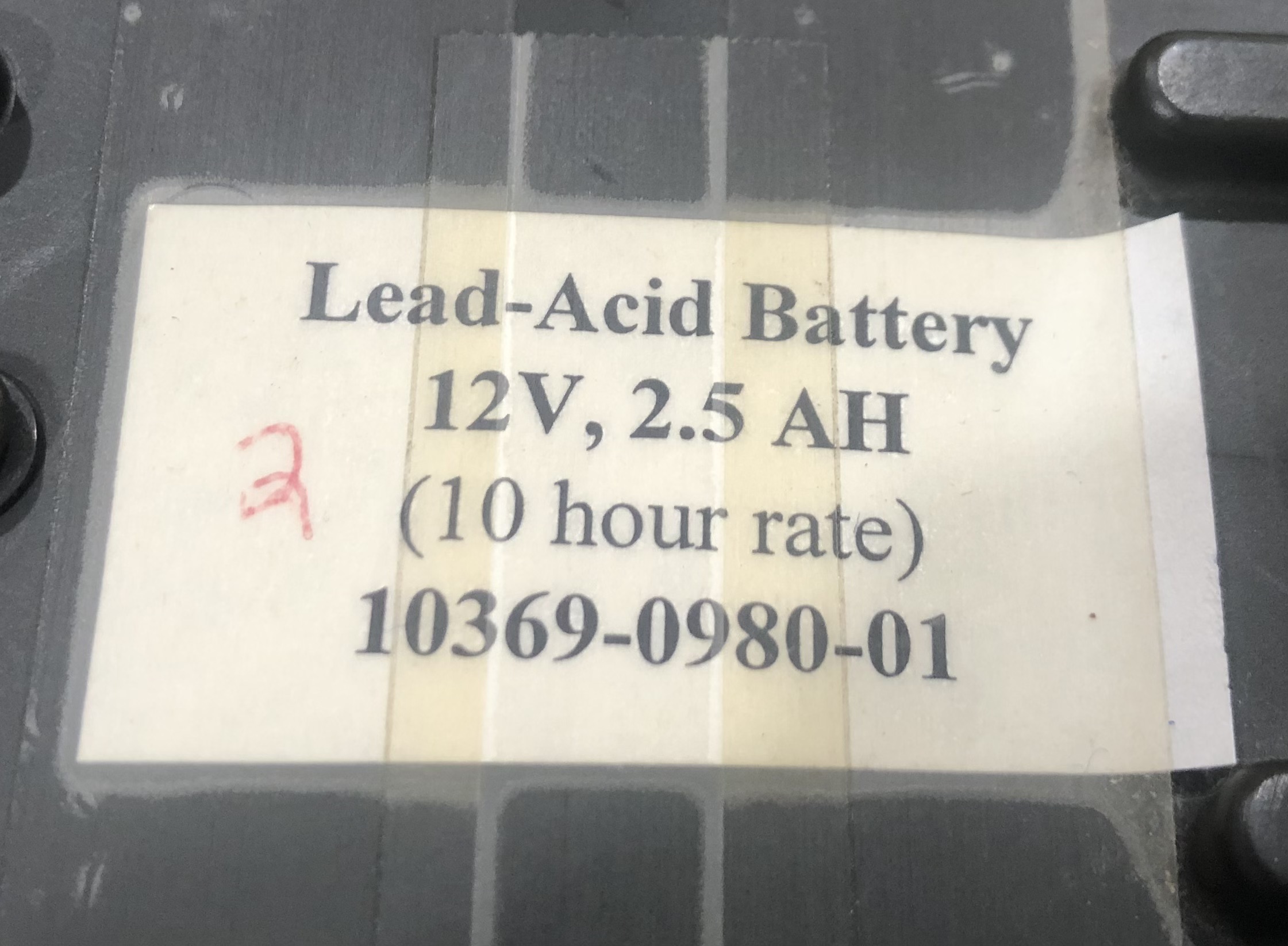

SOLD I have one (dead) 10369-0980-01 2.5 AH lead acid battery pack (second from top) without the charging cable but the cable could be built by someone with the skills. This battery box was SOLD on Ebay.

More detail of the lead-acid pack from Harris





SOLD --- I had one empty case that appears to be able to hold a single BB-390 type battery, Harris P/N: 10012-0330  but it has been SOLD on Ebay.

The sturdy aluminum case consisted of a painted aluminum shell with two latches, pressure relief vent and a battery holder insert. The insert had a connector for a single "BB" series of battery. My notes show the 2 positive battery pins have a diode in series with the red positive output terminal on the top. Overall, the external paint is fairly good with normal handling wear except the bottom which is very scratched. See pictures.

External dimensions of shell (without latches included):  3" x 5.1" x 7.5"





Bottom paint & scratches
