My PRC-117D(E) and collection of accessories


 SOLD----The PRC-117D is manpack, battery operated transceiver, capable of providing voice and data radio communications in both secure and non-secure modes. The PRC-117D radio will operate in the 30-89.975 MHz, 116-173.995 MHz and 225-419.995 MHz frequency bands. It is also labeled as the RF-2117R/T as this version is.


From the original Harris Radio company announcement in April of 1992:

Harris Introduces New Multiband, Multimission VHF/UHF Radio For Export Markets

"Harris RF Communications Group recently introduced a new multiband VHF/UHF radio transceiver designed to meet the multimission, multi-waveform requirements of modern international defense forces.

The new AN/PRC-117D(E) was introduced by Harris specifically for export markets and provides multiple frequency bands in one compact lightweight manpack radio set.

The AN/PRC-117D(E) operates in VHF-FM, VHF-FM/AM and UHFFM/ AM frequency bands and provides for line-of-sight (LOS) operation in all bands, giving complete mission flexibility for ground-to-air, ship-to-ship, ship-to-shore and ground-to-ground communications.

The AN/PRC-117D(E) is interoperable with most tactical radios, including fixed frequency VHF and UHF systems. Waveforms include AM and FM modulation, and Harris' proprietary ECCM frequency hopping. ECCM capability is available in all bands in all line-of-sight modes, and is interoperable with fielded AN/PRC-117A and AN/VRC- 94A(V) series radios.

When used with the built-in RF- 3995 digital encryption option, the AN/PRC-117D(E) provides advanced communications security in the voice and data modes. The RF- 3995 uses a proprietary pseudo random key-generator algorithm with up to 10 exp 52 combinations.

The unique combination of multiple frequency bands and waveforms available in the AN/PRC- 117D(E) effectively reduces the number of radios needed to provide the same communications capability.

The AN/PRC-117D(E) is available in manpack and vehicular versions.

The complete manpack radio set weighs only 15.2 pounds, including battery, antenna and handset. The vehicular version is available with either 10 or 50 watt output."




This recording is a military ATIS signal from a local airfield.

Frequency is 379.975 MHz in AM mode


This recording is of Brazilian SatCom pirates speaking Portuguese.
Frequency is 263.925 MHz in FM mode through a US satellite.


This is a list of everything I have along with the approximate weights:

PRC-117D(E)  aka RF-2117R/T PN 10369-1100-120 with integrated ECCM encryption option RF-3997,  assembly SN-0582   12 pounds  SOLD

Vehicular adapter, AN/VRC-94D with power supply, mount, RF amp and cables, SN-00158  45 pounds  SOLD ---

Vehicular adapter power cable 6 pounds    SOLD --- with the adapter

117/230VAC to 12VDC battery eliminator/power supply with AC power cord.  5 pounds    SOLD

NiCad battery pack, some capacity left, 4 pounds   SOLD ---

NiCad battery pack,  dead, needs rebuild 4 pounds   SOLD ---

NiCad  battery pack, dead, needs rebuild 4 pounds   SOLD ---

SOLD Lead acid battery pack, dead, needs rebuild, don't have original charger cord with 3 pin connector 4 pounds and is currently listed on Ebay

SOLD Battery case, 10012-0330 with adapter for single BB390 type battery 2 pounds and was sold on Ebay

SOLD ---Battery charger-exerciser,  RF-3094-01, charges 1 to 3 NiCad batteries, with AC power cable 20 pounds

SOLD --- Antenna, VHF tape whip (6)  (2 to be sold with radio)  4 FOR SALE

SOLD --- Antenna UHF rubber duck/donkey-dong (SOLD)

SOLD --- Microphone, M-80C/U (1)  (1 to be sold with VRC94)

HANDSET H-250/U  (4)  (2  sold)

SOLD --- Speaker LS-454/U  (to be sold with VRC94)

Canvas antenna & microphone case from Harris (3) (1 to be sold with radio)  ONE sold

All together 7 pounds

Documents/Manuals:

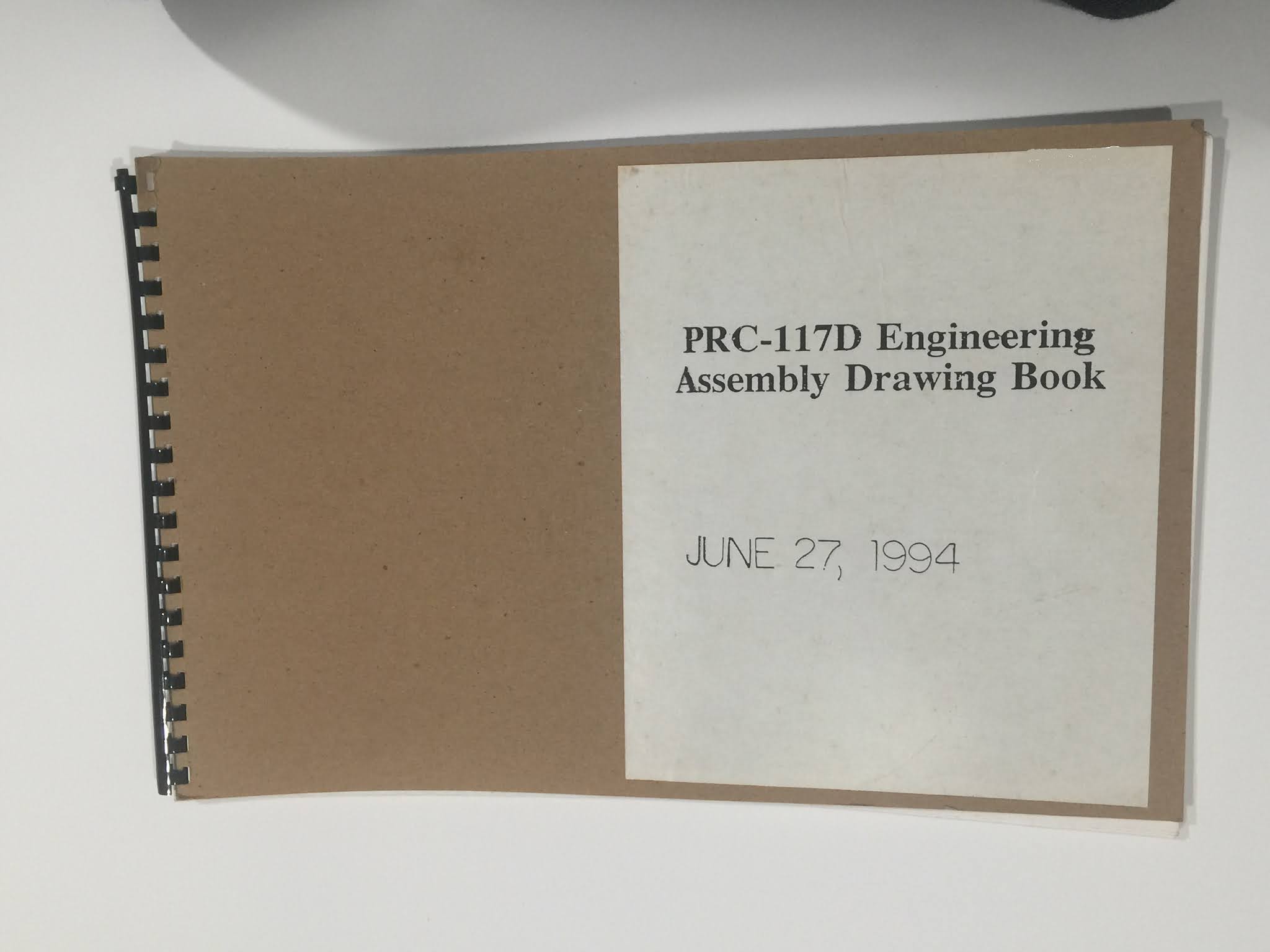

PRC-117D ENGINEERING ASSEMBLY DRAWING BOOK, spiral bound, from 1994 3 pounds  SOLD ---

PRC-117D ENGINEERING SCHEMATICS BOOK, spiral bound, from 1994 3 PhDs. 3 pounds  FOR SALE

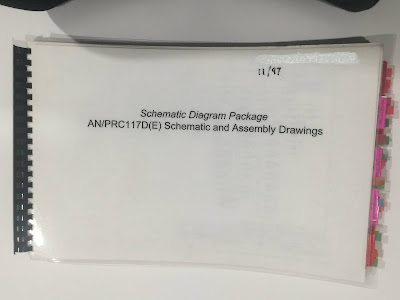

AN/PRC117D(E) SCHEMATIC & ASSEMBLY DRAWINGS, spiral bound,  from 1997 3 pounds  (to be sold with radio)  FOR SALE

AN/PRC-117D & AN/VRC-94D INSTRUCTIONS, THEORY, MAINTENANCE (for radio and VRC),  LARGE 3 RING BINDER 8 pounds SOLD ---  with the adapter

OPERATOR GUIDE-BOOKLET FOR AN/VRC-94D  SOLD ---

INSTRUCTION CARDS (small format) FOR AN/VRC-94D SOLD ---

Total weight approx. 135 pounds without packaging for shipment

Here are some pictures of the PRC-117D running the internal s/w self-test routine. Software is version 30C.





Typical handset which I do have



This is a nice Piezo speaker meant for a SINCGARS transceiver but the speaker works decently with the PRC-117. I connect it to the radio's "FILL" connector so as to be able to have a handset on the main audio connector. Model is LS-685/U   SOLD ---



This is the UHF Antenna that I have for the radio.

Fine print on it says:

37695ASSY  812059-1  HYTENNAS INC  10047  SOLD ---



This is the Harris supplied (new) case for the antennas and handset




I don't have the hard copies of this sales document, just the photos.



Some useful document links:

AN/PRC-117D(E) user manual

Instructor Training Guide

PRC-117D(C) manual


Service and repair document photos
